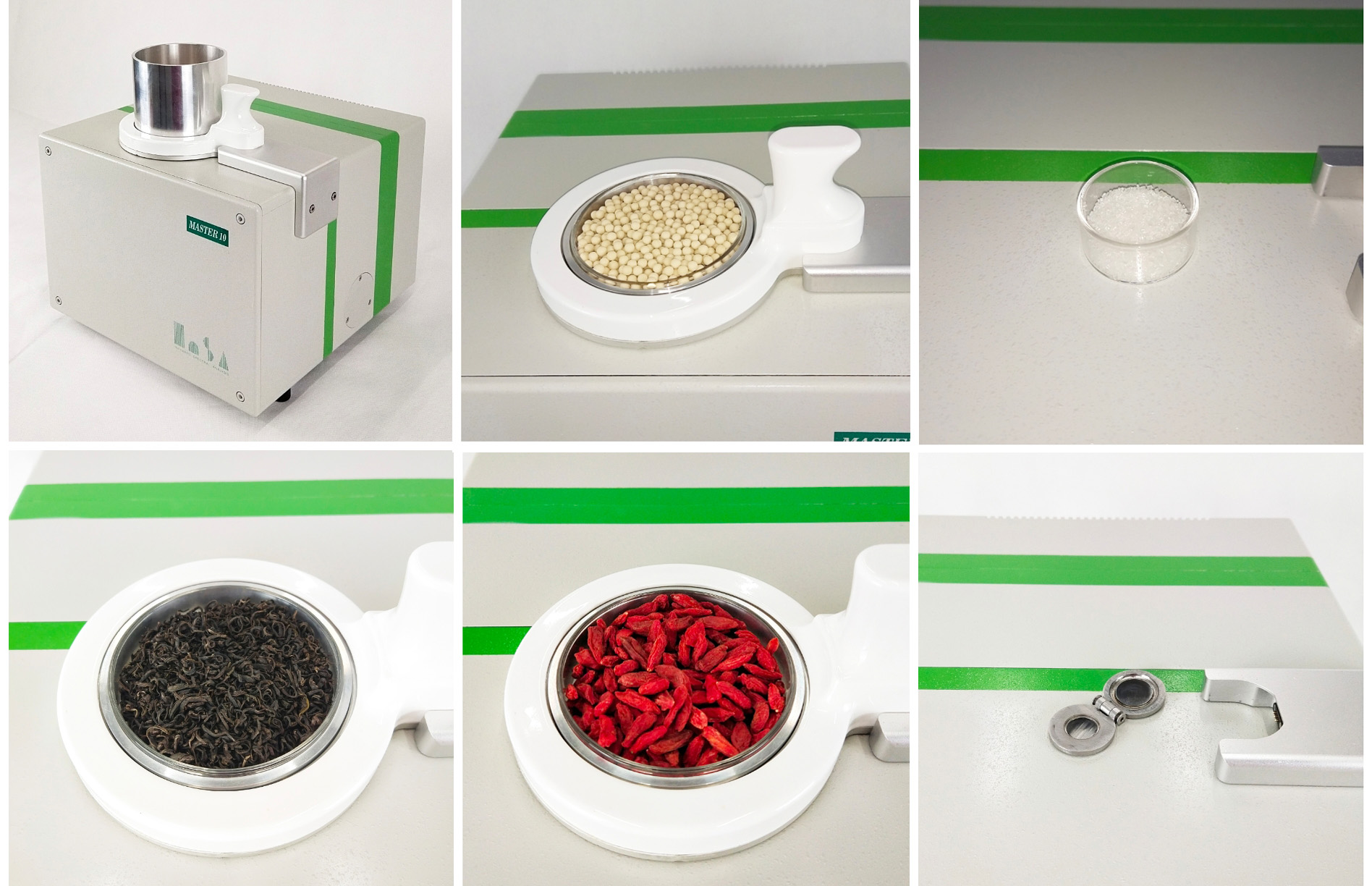

MASTER10-S integrating sphere FT-NIR spectrometer
- Ununiform powder solid and granular solid reflection measurements

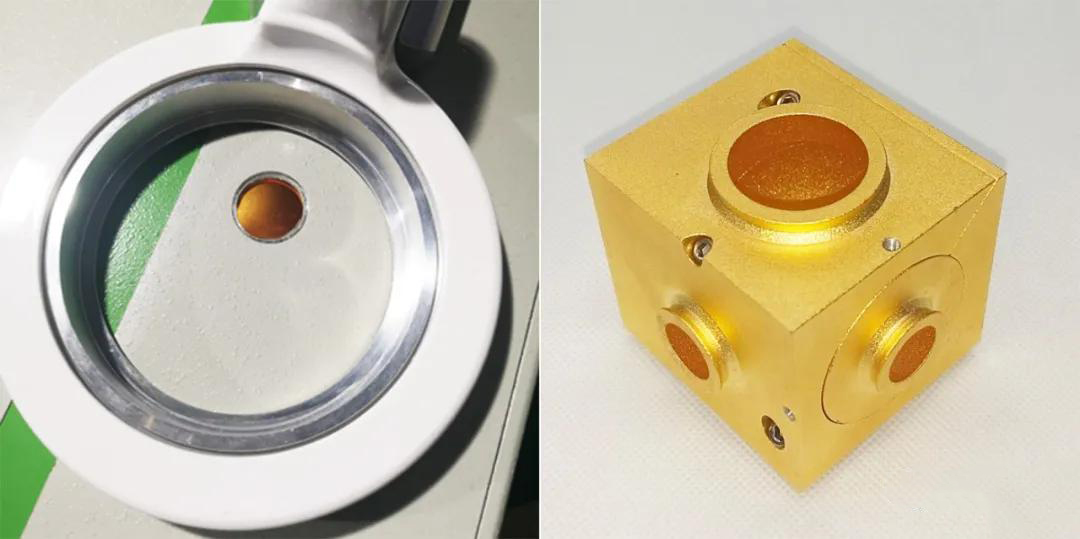

- Gold-plated Integrating sphere
- Laboratory application
- Parameters
- Ununiform powder solid and granular solid reflection measurements
- Gold-plated Integrating sphere
- Laboratory application
MASTER10-S is a high performance Fourier transform near-infrared(FT-NIR) spectrometer with a full wavelength range. It is suitable for the analysis of solid products such as feed, dairy, food and textile and equipped with a Gold-plate integrating sphere.
Feartures:
- High resolution, full NIR coverage
- Built-in fully gold-plated integrating sphere, built-in automatic switching of the gold-plated background
- Highly reproducible spectra
- Easy to software
- Fast and accurate multi-component quantitative and qualitative analysis
- OEM and customized products and accessories are available
Application
- Feeds:composition analysis of proteins, fats, carbohydrates, energy, amino acid etc.
- Food: content analysis of moisture, protein, fat, amino acids, fatty acids, etc.
- Textiles: analysis of the content of cotton, linen, hydrogen and brocade in textiles, etc.
Items | Parameters |
Spectral Resolution | ≤ 2 cm-1 |
Spectral Range | 12500 - 4000 cm-1(800 - 2500nm) |
Light Source | High Performance NIR light source |
Detector | High sensitivity InGaAs 2-stage TE-cooled |
Laser | Solid laser 10 year warranty |
Beamsplitter | CaF2 |
Wavenumber Precision | ≤0.02 cm-1 |
Interferometer | High stability Cube corner interferometer |
Software interface | Window 7/10 |
Operating temperature / humidity | 5 to 35oC / non condensing |
Storage temperature | -10 to 60oC |
Communication interface | Ethernet or adaptor to USB2.0 |
Optical fiber input | SMA 905 connector |
Rotating sample cups | Sapphire |
