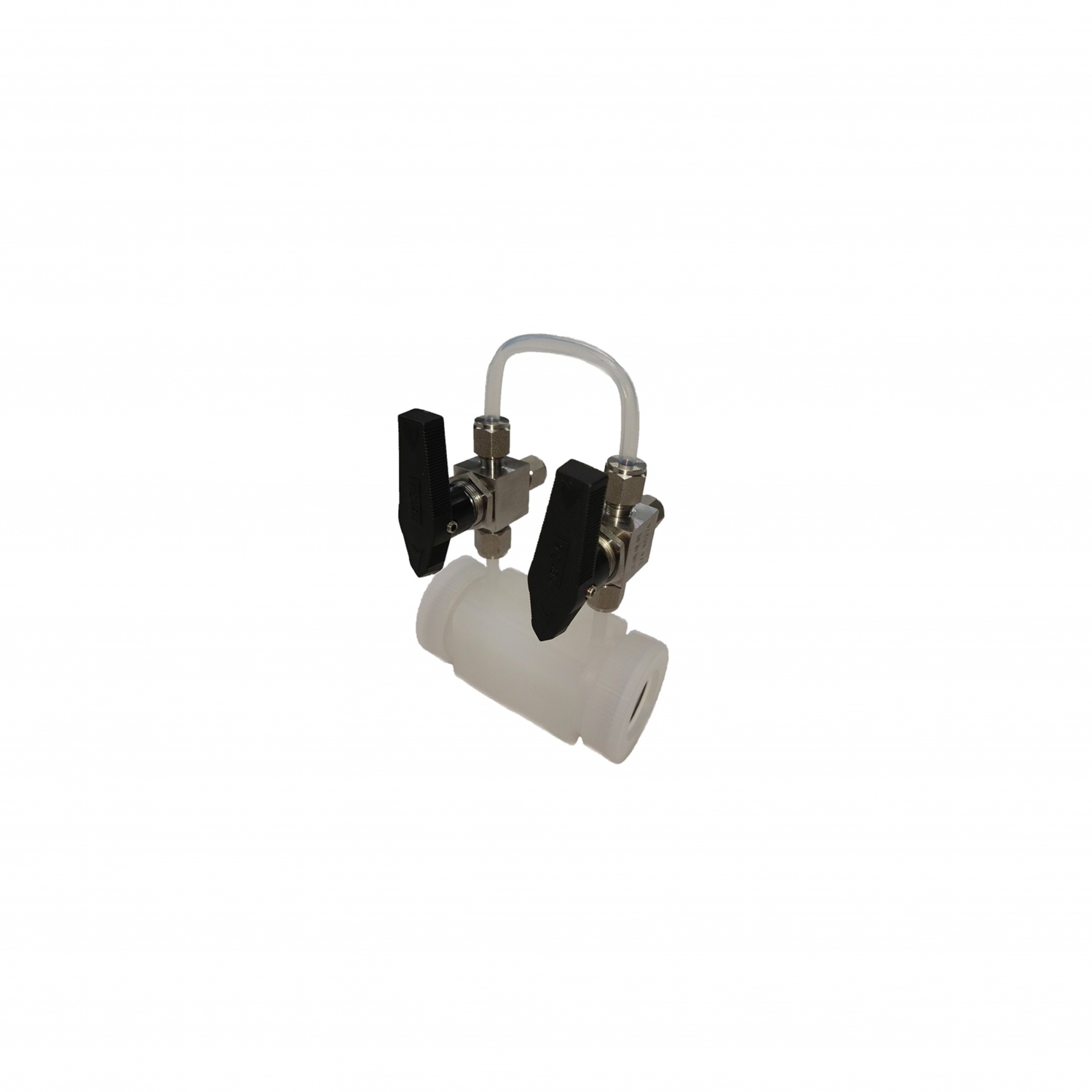

Design features:
The cell is made of high purity PVDF or high purity PTFE material, which has the characteristics of high toughness, low friction coefficient, corrosion resistance, ageing resistance, weather resistance and good irradiation resistance among fluoroplastics.
Properties:
Applications:
Gas: Fluorine-containing gases in the fluorine chemical industry (HF, SF6);
Liquids: Facile hydrolysable liquids (SiCl4, GeCl4); Volatile liquids (CCl4).
Light range: 100mm
Window diameter: ≤45mm
volume: ≤85ml
Pressure: ≤0.3Mpa
Material options:
Cell material: PTFE, PVDF
Window : BaF2, ZnSe, etc.
Valve: tee valves, needle valves, etc.
Valve material: PTFE, Hastelloy (≤ 0.5Mpa)
Valve size: 1/4-inch, 6mm
