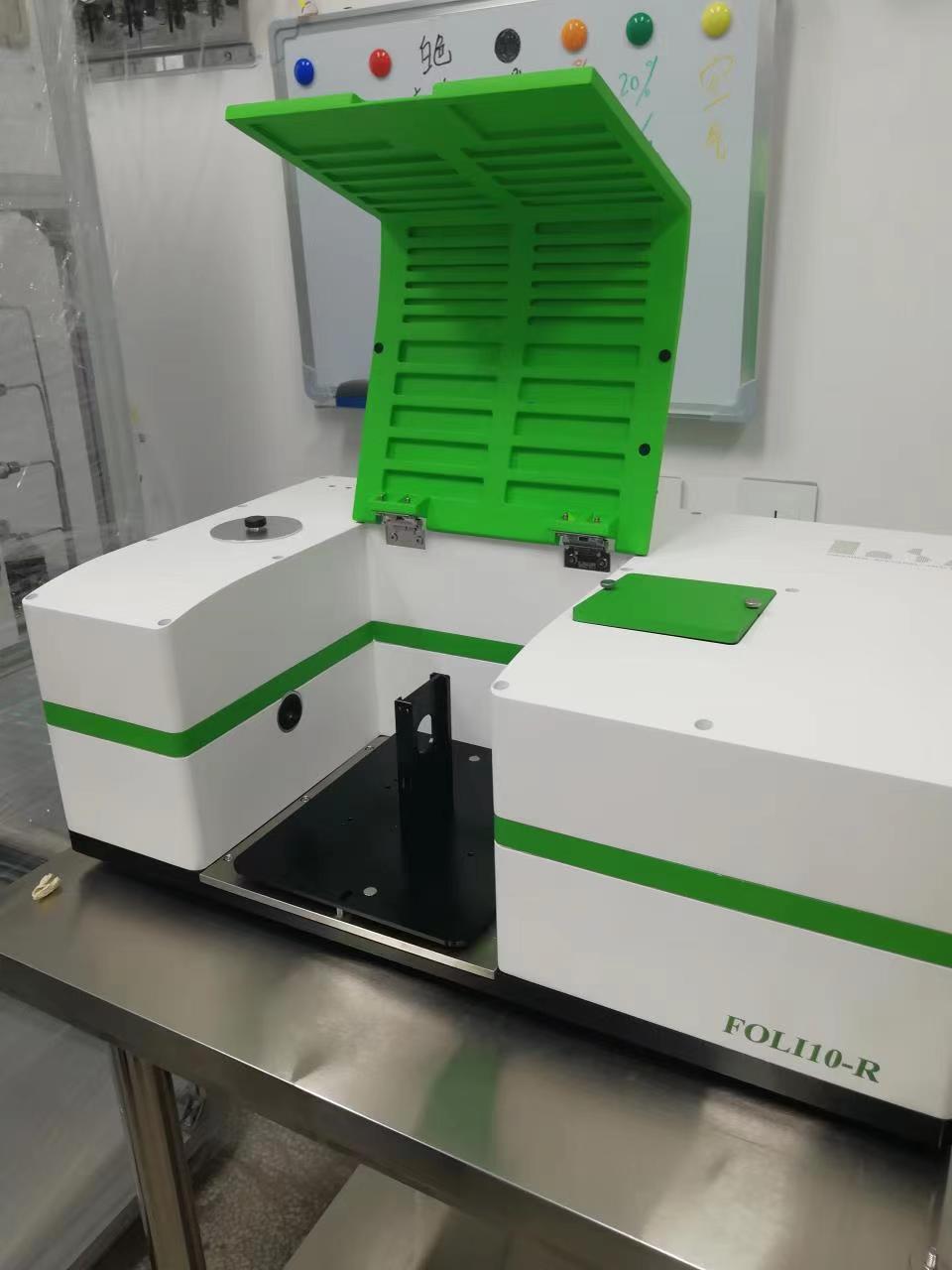

FOLI10-R FT-IR Spectrometer
- Double-Chamber for single- or double-channel
- Room temperature DLaTGS detector or highly sensitive liquid nitrogen cooled MCT
- Large sample chamber: Compatible with various types of infrared accessories, such as In-situ diffuse reflection accessory and In-situ transmission accessory
- The double-channel mode is appropriate to test transmission spectrum for various curvature samples and test diffuse transmission spectrum by integrating sphere
- Parameters
- Double-Chamber for single- or double-channel
- Room temperature DLaTGS detector or highly sensitive liquid nitrogen cooled MCT
- Large sample chamber: Compatible with various types of infrared accessories, such as In-situ diffuse reflection accessory and In-situ transmission accessory
- The double-channel mode is appropriate to test transmission spectrum for various curvature samples and test diffuse transmission spectrum by integrating sphere
Features:
FOLI10-R adopts integrated and completely sealing design and equips with moisture-proof ZnSe beam splitter and highly sensitive detector. The sample compartment can compatible with many accessories, such as IR transmission module, ATR, diffuse reflectance, etc. The in-situ diffuse experiment involves in-situ diffuse reflectance attachment, temperature controller and other auxiliary equipment, all these can be contained inside.
Hardware features:
- Interferometer：High stability cube corner interferometer. 10-year warranty
- Optical system: Golden mirror, the reflectivity is more than 5% higher than aluminum mirror. It offers superior optical performance, favorable oxidation resistance, high stability and reliability
- Detector: DLATGS, TEC MCT, LN MCT etc.
- Laser: High reliability, stability, and long life(> 10 years)
- Source: High-performance with long life-time
Application:
FOLI10-R has various test modes for wide applications. Such as transmission, ATR, diffuse reflection modes.
- Pharm & Life Science
- Microorganism Identification
- Polymer and Chemical Products
- Surface analysis
- Material Science
- Semiconductor Industry
- Soil Analysis
Protein conformation and quantification
Quantification for Active Pharmaceutical Ingredients and excipient in water solution
Characterization for the volatility and stability of medicine combined with TGA module
Detection and Characterization for the volatility and decomposition combined with TGA module
Monitoring reaction process in lab combined with MIR fiber probe module
Detection and Characterization for the Ultra-Thin film and mono-layer film
Characterization for the erosion process
Detection of Emissivity of building materials
Evaluation for Optical material such as Infrared windows and mirrors
Study on black material with photoacoustic spectroscopy
Measurement for thickness of various non-metal films
Measurement for content of Carbon/Oxygen in silicon QC
Evaluation for nutrition and organic matter in soil
Study on the characteristic of different soil
| Items | Standard Parameters | Optional Parameters |
|---|---|---|
Spectral Resolution | ≤1cm-1 | |
Spectral Range | 4000-400cm-1 | 4000-400cm-1 |
Source | Ceramic SiC | |
| Beam Splitter | KBr | ZnSe |
| Detector | Room temperature DLaTGS | LN MCT, TEC MCT，LN InSb, LN Ge and TEC InGaAs etc. |
Wavenumber Accuracy | < 0.01 cm-1 | |
Signal to Noise | 40000:1 | |
| Wavenumber Precision | < 0.1 cm-1 | |
| Modules | Optional measure modules for replacement | |
